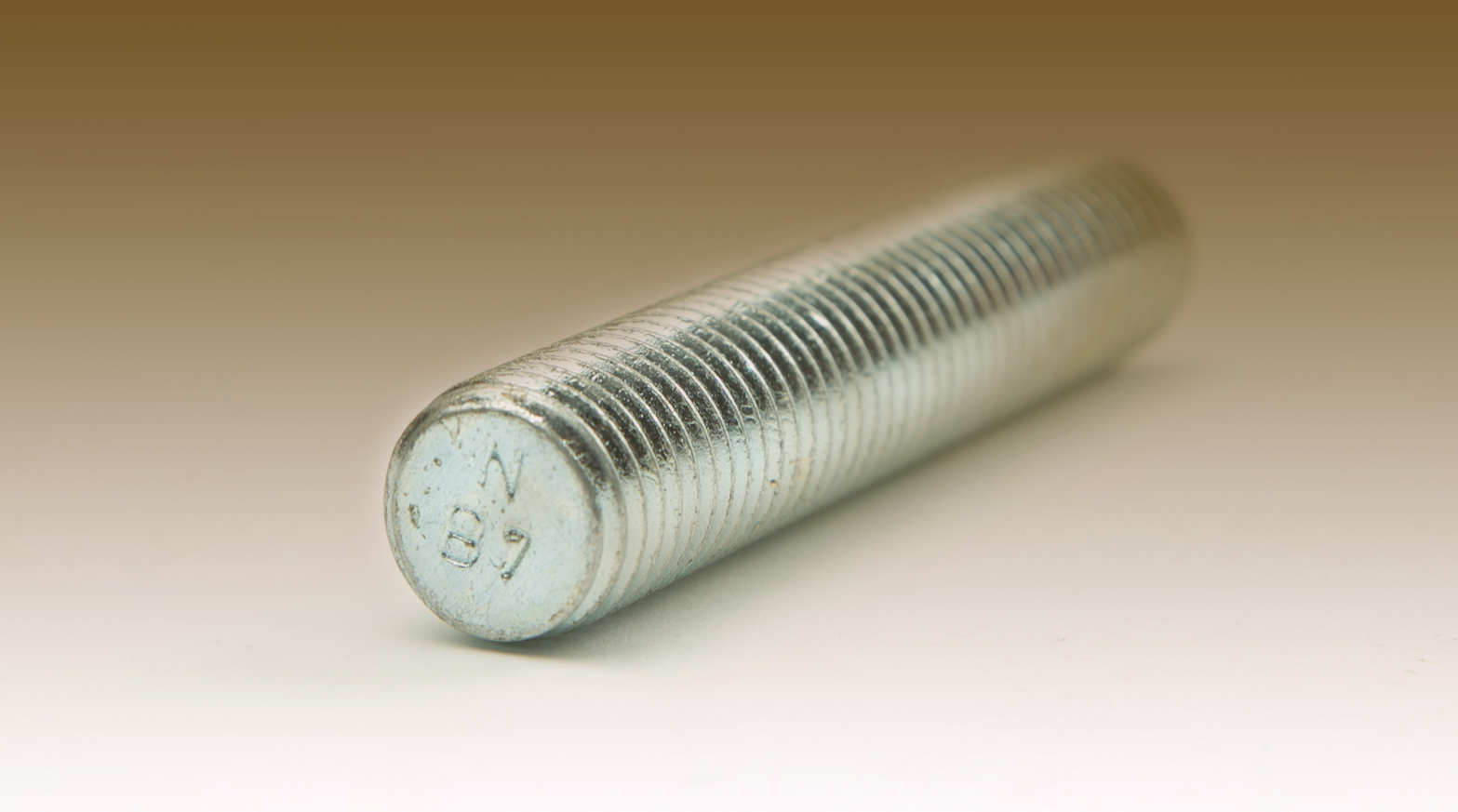

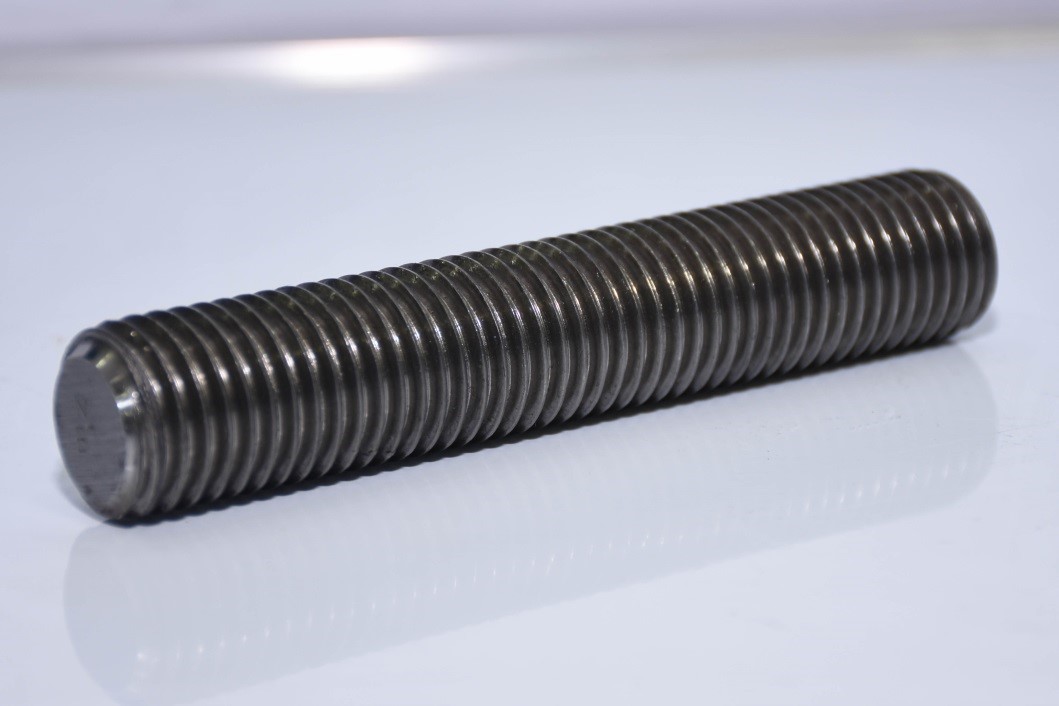

A stud bolt is a mechanical un-headed fasteners with a fully or partially threaded body which, with additional hardware (nut ) , can secure two adjacent objects or surfaces. Unlike many types of bolts, this particular style is not driven into an object or surface, but passed completely through.

Nuts or flanges on either end of the bolt then hold the two objects together.

The ability to adjust the tightness is a key element lending to the popularity of the stud bolt in a variety of applications. Engineering, motor, automotive, petrochemical and nuclear industries all make use of these bolts which can be specially contoured to distribute stress evenly, reducing the occurrence of breakages.

it can also be used as an anchor bolt in civil and architectural engineering. This is accomplished through cast-in-place techniques that insert one end of the rod into setting concrete. The threaded end provides added resistance to pullout and machinery or other objects may be fastened to the exposed threading with a single nut or flange.

The materials used for stud bolts and corresponding nuts and flanges depend largely on the use, though steel alloys are the industry standard. Zinc,PTFE & Fluoropolymer coatings are common finishes that enhance the corrosion and environmental resistance of steel.

We Manufacturers stud bolts for general purpose , flange joints in piping systems and for oil field applications in high pressure / high temperature & low temperature services

THREADS OF THESE STUD BOLTS ARE IN METRIC SYSTEM

THREAD SPECIFICATIONS
ANSI /ASME B1.13M -6g / ISO DIN 13 -6g.
SPECIFICATIONS
DIN 975,A36M, A325M, A490M* & ISO 898 -1.
PRODUCT RANGE
M12 – M100 in diameter and up to xx meter in length
LENGTH TOLERANCES
ANSI/ASME B16.5 & as per customer requirement
MARKING
“ N + CLASS ”
SUITABLE NUTS
ASTM A563M CL-10S / DIN 6915 CL-10

THREADS OF THESE STUD BOLTS ARE IN INCH SYSTEM

THREAD SPECIFICATIONS
ANSI / ASME B1.1-2A .
SPECIFICATIONS
ASTM A307,ASTM A36 & ASTM F1554,ASTM A193, A320,A325,A354, A449 & A490*
GRADE / CLASSES
Grade –A,B,C, Gr- 36,105,B7,L7,B7M,L7M,B8,B8M,GR-BC,BD & TY-1
PRODUCT RANGE
½ “ – 4” IN DIA & upto 6.0 meter in length
LENGTH TOLERANCES
ANSI /ASME B16.5 & as per customer requirement
MARKING

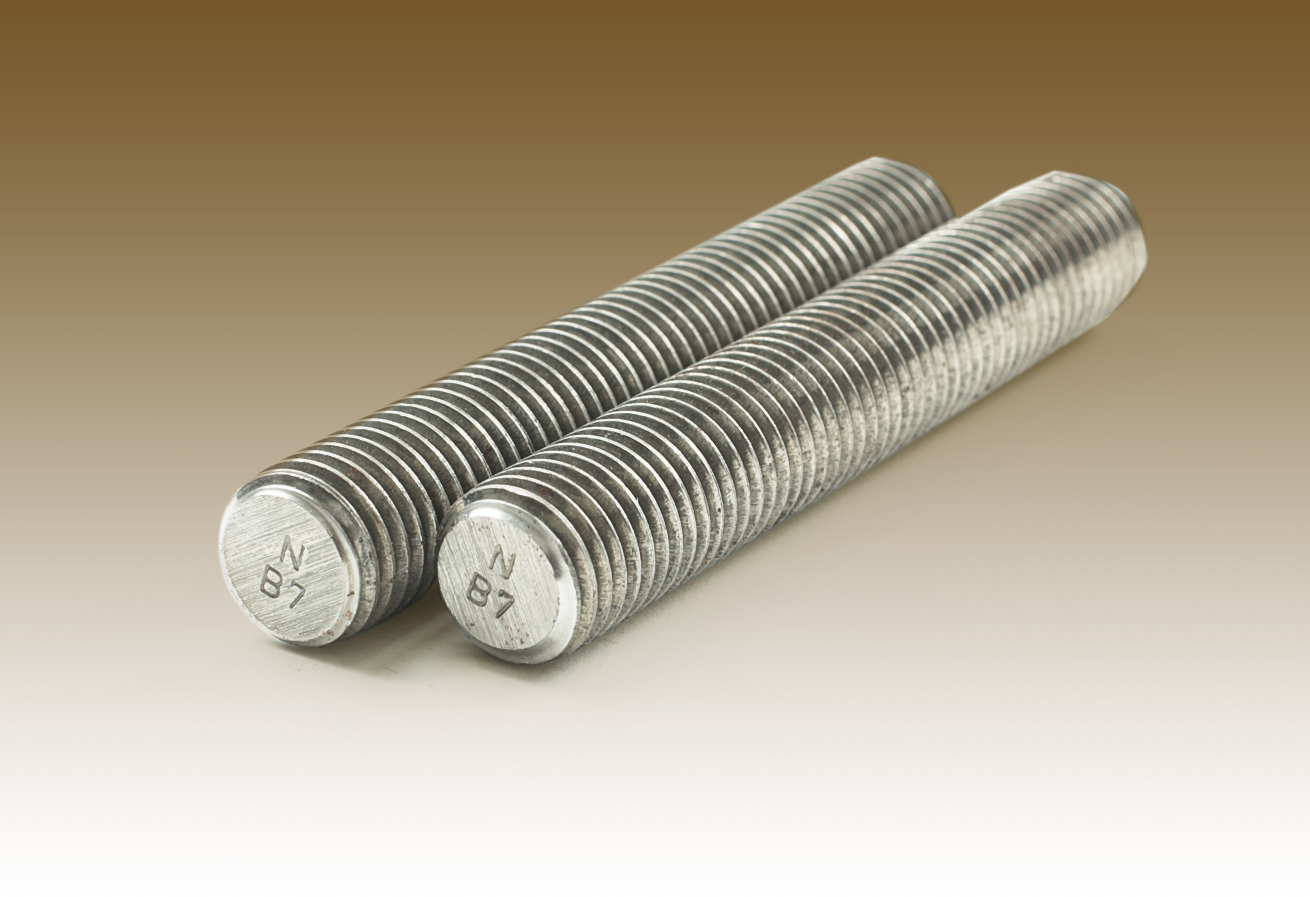

“ N + GRADE ”
SUITABLE NUTS
SPECIFICATION SUITABLE NUT

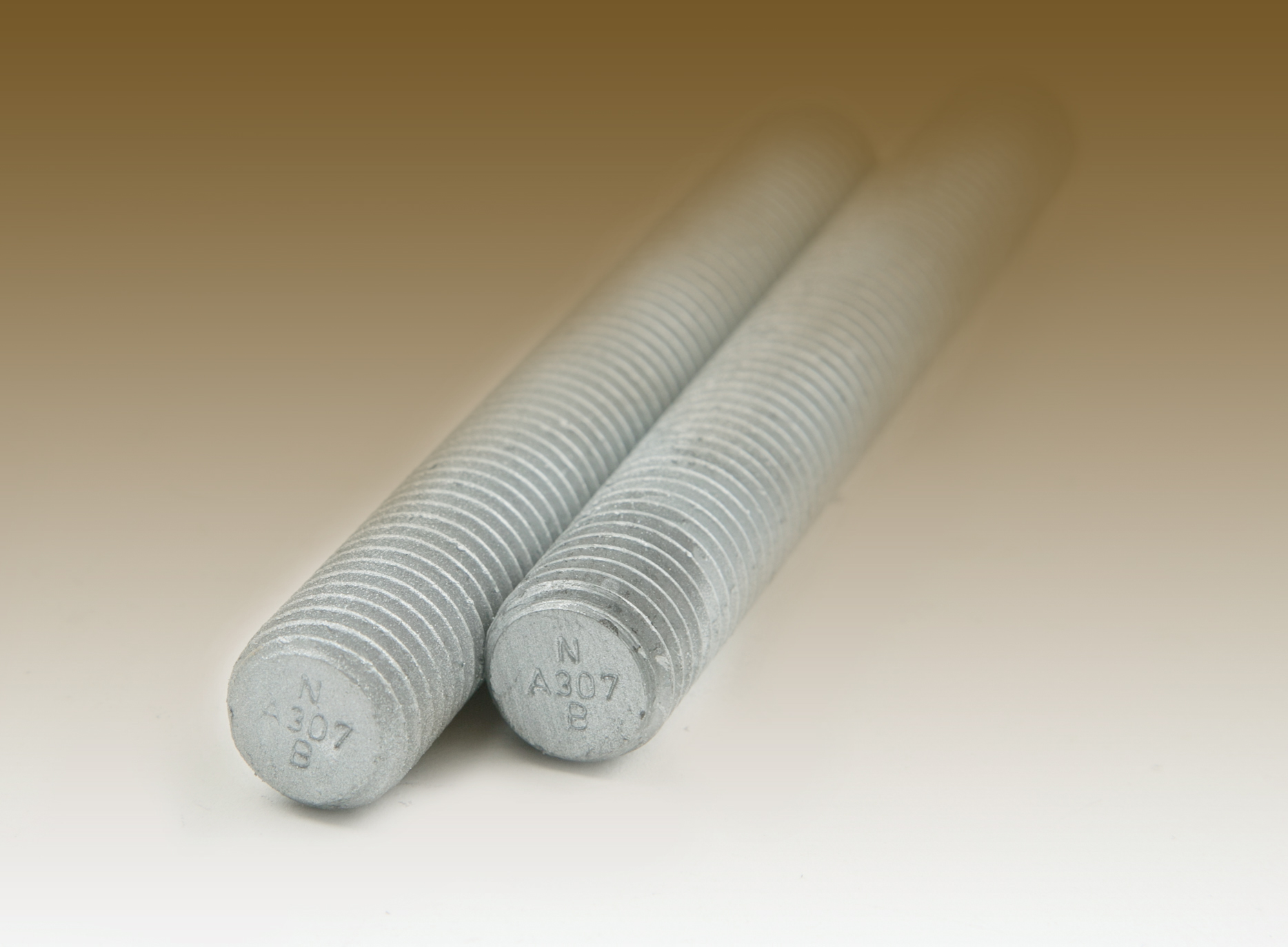

ASTM A307 GR-A ,GR-B ,GR-C ASTM A563 GR-A,B,C ,GR-DH /A194 GR-2H.
ASTM A36 & F1554 GR-36 & GR-55 ASTM A563 GR-A,B,C ,GR-DH /A194 GR-2H.
ASTM F1554 GR-105 A193,A320,A325,A449,A354 & A490 TY-1. ASTM A563 GR-DH /A194 GR-2H.
ASTM A193 GR-B8 & B8M ASTM A194 GR-8 /8M .
ASTM A193 /A320 GR-L7 ,L7M ASTM A194 GR-7, 7M .
ASTM A193 GR-B7M, ASTM A194 GR- 2HM ,
